EAS 8.2MHz System - Standard

Product Code: 250402-00

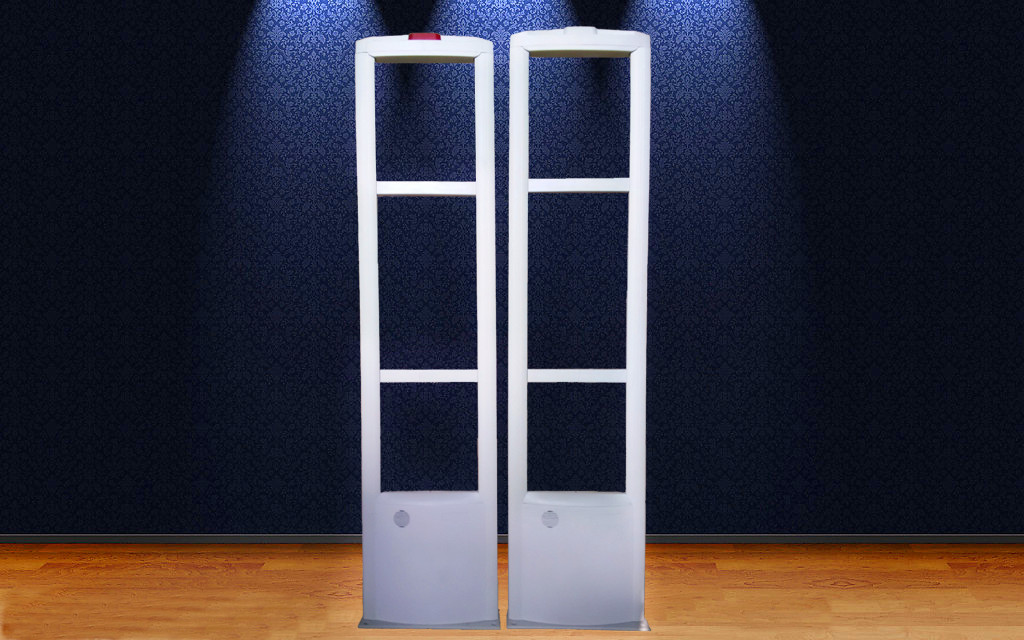

This is a dual pedestal detection system.  The system consists of a transmitting antenna and a receiving antenna. It is ideal for all retail environment, and very easy to install.  It can detect paper labels and hard tags.

Technical Data

  • Technical Data
  • Dimension in mm : 1570 x 370 x 90
  • Weight : 9kg
  • Mains 240 VAC
  • Alarm : Siren and Light
  • Centre Frequency : 8.2MHz
  • Scanning frequency : 7.7MHz ~ 8.2MHz
  • Nominal detection range : 1.5m

Items :

  • 1 x Transmitter(Tx) and 1 x Receiver(Rx)
  • 1x Power Supply
  • 1.5m two-cores shielded Tx/Rx connection wire
  • 8 x bolts for installation
  • 1x Technical Manual

Possible configurations :

  • Tx / Rx
  • Rx / Tx / Rx
  • 2 systems Tx / Rx / Tx / Rx
  • Multi systems

Package : 1 pair ( Tx & Rx)
